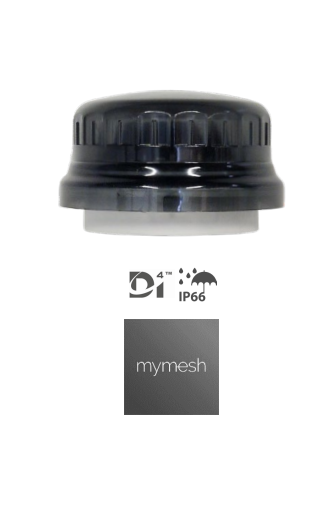

obiWAN® DCOBI-MMZG
mymesh Zhaga outdoor lighting controller
DCOBI-MMZG is a 2.4GHz mymesh by Chess Wise B.V. enabled DALI outdoor lighting controller, powered directly from a D4i LED driver and is installed on a luminaire using a Zhaga Book 18 street lighting connector.
mymesh Zhaga outdoor lighting controller
Product Overview
DCOBI-MMZG is highly affordable and provides the basis for an advanced energy-efficient lighting control solution that helps businesses and institutions reducing their energy consumption and shortening their ROI.
DCOBI-MMZG is based on the mymesh by Chess Wise B.V. protocol and will work with other mymesh devices from other vendors, enabling increased functionalities in your lighting control network.
Typical Applications
Ordering Data
| Model no. | OW.MMZG.001 / DCobi-MMZG |
| Description | mymesh Zhaga outdoor lighting controller, with ambient light sensor and motion sensor digital input |
| Installation | Zhaga, external |
| Wireless network | 2.4GHz mymesh by Chess Wise B.V. enabled |
| Power supply | 24VDC |
| Luminaire interface | DALI-2 |
Technical Data
| Input | |
| Supply Voltage: | 24VDC |
| Nominal Current: | 5mA |
| Power Consumption: | <0.12W |
| Luminaire interface | DALI-2 according to IEC 62386 standard, compliant with D4i |
| Radio transceiver | |
| Operating frequency: | 2.4 GHz |
| Maximum output power: | +8 dBm |
| Radio protocol | mymesh by Chess Wise B.V. |
| Radio range(1) | 200m (656ft) |
| Operating conditions | |
| Operating temperature range: | -40 °C to +70 °C |
| Humidity: | 95% RH, non-condensing |
| Storage Temperature: | -40 °C to +85 °C |
| Mechanical | |

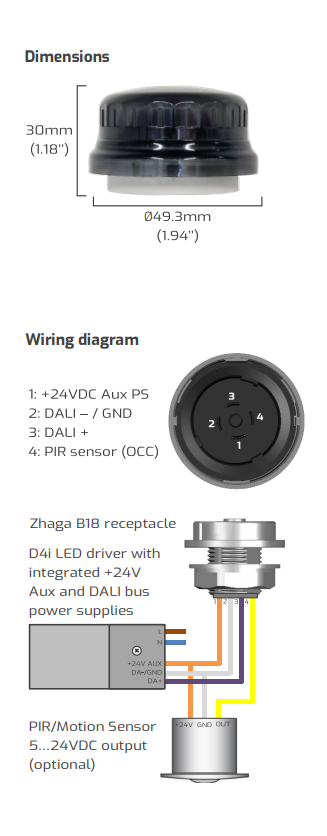

| Dimensions: | H30mm (1.18") x D49.3mm (1.94") |
| Weight: | 26g |
| Degree of protection: | IK09, IP66, when fitted |
| Housing | |
| Base: | PBT, grey or black |
| Cap: | PC polycarbonate, transparent smoke grey |
| Thermoplastic rating: | UL 94V-0 and UL UV-f1 |
| Mounting type | Zhaga Book 18 receptacle |
| Warranty | 5 years |
| Reliability data | 389 FIT (@25°C, FIDES 2009) |
| Approval marks(2) |  |
| Standards(2) | IEC 62368-1, FCC Part 15, Subpart B CFR 47, CISPR 11, IEC 62386 |
| Commissioning and control mobile apps | iPhone iOS and iPad iOS or later are supported (Apple Store). Android or later is supported (Google Play). |
(1) With line of sight. Range is highly dependent on the installation conditions, surrounding environment and obstacles. Using mesh network technology, each node acts as a repeater. Longer ranges can be achieved by using multiple nodes.
(2) Approval pending.
Answers to the questions
we’re asked most.
We’re here to help! Our FAQ section provides quick answers to some of the most common inquiries we get on our IT services.
What wireless network does this controller use?
It uses the 2.4 GHz mymesh protocol by Chess Wise B.V. The mesh forms automatically and each node acts as a repeater — no external gateway is required.
How is it installed?
It mounts externally on a standard Zhaga Book 18 receptacle (twist-lock socket) on the luminaire.
What is the power supply requirement?
24VDC, with an average power consumption of <0.12W.
What luminaire interface does it support?
DALI-2 according to the IEC 62386 standard, compliant with D4i, up to 4 individually addressed drivers.
Does it have onboard GPS?
This model does not include onboard GPS; commissioning is handled through the mobile app and management platform.
What are the dimensions and weight?
H30mm (1.18") x D49.3mm (1.94"), weighing 26g.
What is the warranty period?
5 years, subject to obiWAN Terms & Conditions.
