obiWAN® LAMPYRiS
SiP embedded cellular outdoor lighting controller

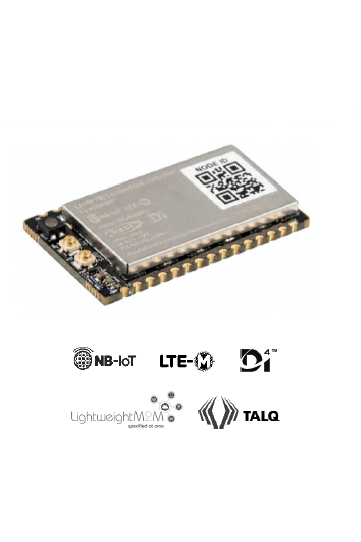

LAMPYRiS is a complete System in Package (SiP) Low Power Wide Area Cellular Narrow Band DALI-2 outdoor lighting controller, designed to be embedded directly into the electronic board of a smart LED driver, a LED light engine or a solar lighting MPPT smart charge controller, like a regular electronic component.
SiP embedded cellular outdoor lighting controller
Product Overview
LAMPYRiS works straight out of the box, connecting your lighting equipment directly to the existing NB-IoT/LTE-M cellular network without the need for additional gateways, self-acquiring its GPS location and auto-commissioning into any LwM2M or TALQ compliant Central Management Platform. Just like that, with no more complexity to the adoption of massive IoT technology in the urban environments.
Key Advantages and Features
• Disruptive industry-leading form factor
• Plug and Play auto commissioning
• Extremely low power consumption
• Onboard GPS for self-location and commissioning
• Dramatically reduces smart control costs, enabling any luminaire to be factory-smart
• Can be soldered directly into a PCB or clipped into a card edge connector
• Asset management oriented, extended control and data exchange with D4i Drivers
• Multi-driver and multi-master management capabilities, up to 4 drivers and sensors
• Robust and secure full two-way wireless communications
• Over-the-air firmware upgrades
• Automatic identification of all lamp failures, reducing on-site activities
• Onboard astronomical clock and lighting schedules with dimming profiles
• Energy and electrical parameters metering suitable for utility billing
• Improved safety from extra-low voltage power supply
• Very high reliability, 10 years warranty from factory
Typical Applications
Ordering Data
Description: LAMPYRiS - SiP embedded cellular (NB-IoT/LTE-M) outdoor lighting controller
Installation: Soldered into a PCB or clipped into a card edge connector
Wireless network: Works with standard LTE 3GPP cellular network NB-IoT/LTE-M
Power supply: 24VDC (operational range: 4VDC to 33VDC)
Luminaire interface: DALI-2
Warranty: 10 years
Technical Data
Supply voltage: 24VDC (operational range: 4VDC to 33VDC)
Power consumption: Average <0.3W
Interfaces
DALI-2 according to IEC 62386 standard, compliant with D4i, up to 4 Drivers, individually addressed
Onboard GPS
GNSS automatic and precise self-location and commissioning of the smart device, ≤5m
Metering
Accuracy as per EN50470 or ANSI C136.52
Environmental
Operating temperature range: -40 °C to +70 °C
Humidity: 95% RH, non-condensing
Storage temperature: -40 °C to +85 °C
Mechanical
Dimensions: L43.38mm (1.71'') x W23mm (0.91'') x H5mm (0.20'')
Weight: 10g
Mounting type: Soldering into a PCB or clipped into a card edge connector
Warranty: 10 years
Reliability data: 654 FIT (@25°C, FIDES 2009)
NB-IoT/LTE-M Network
Modem: 700-2200MHz Band Support, CAT-M1: B1-B5; B8; B12-B14; B17-B20; B25-B26; B28 and B66, CAT-NB1/NB2: B1-B5; B8; B12-B13; B17; B19-B20; B25-B26; B28 and B66
Communications: Data Throughput: NB-IoT: 30/60 kbps (DL/UL) LTE-M: 300/375 kbps (DL/UL), Rx Sensitivity LTE-M1: -108 dBm | NB-IoT: -114 dBm | GPS: -155dBm, Output Power: up to 23dBm
Protocols/Security: LwM2M (OMA objects), IPv4/IPv6 Addressing, Secure Socket (DTLS), Root of Trust, RSA, ECC, SRP, SHA-1, SHA-2, AES Symmetric Encryption
Certifications: D4i Certified, LwM2M and TALQ compliant
Installation: Soldered into a PCB or clipped into a card edge connector
Meet LAMPYRiS

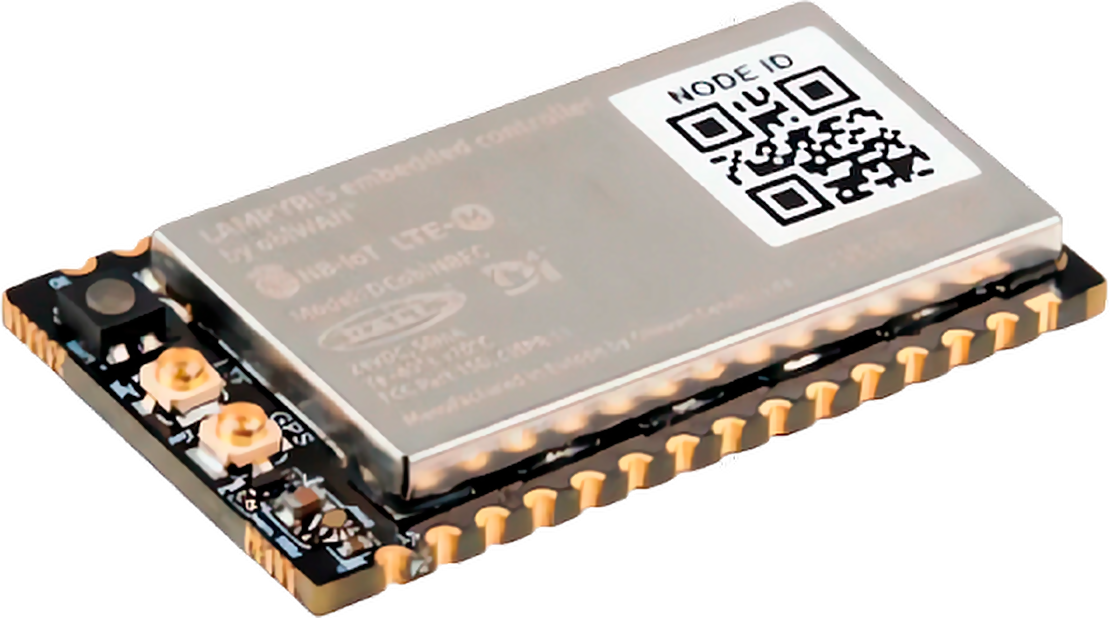

An industry-leading System-in-Package that solders straight onto the driver PCB, making any luminaire factory-smart.
Average consumption below 0.3W, powered directly from the driver over a 4–33VDC range.
Auto-commissioning with onboard GPS for self-location, no manual setup required on site.
Controls up to 4 individually addressed drivers over a DALI-2 interface, compliant with D4i.
Small footprint. Big savings.
With only 1.7 × 0.9 in (43 × 23 mm), about the size of a 2€ coin, LAMPYRiS makes any LED driver factory-smart.
Only 1.7 × 0.9 inches (43 × 23 mm), an industry-leading form factor for embedded cellular control.
Solders straight onto standard LED driver or LED light engine PCBs via castellated holes.
Fully compatible with automated SMT lines, minimizing labor costs in automated factories.
Fewer components per luminaire dramatically decrease the cost of smart lighting control.
LAMPYRiS value proposition
Embed smarter intelligence closer to the fixture while controlling manufacturing costs, LAMPYRiS turns any luminaire factory-smart without rewriting hardware roadmaps.
Factory-Smart Integration
Solders directly onto existing LED driver, light engine or solar MPPT circuit boards like a standard electronic component, eliminating expensive external plastic housing and secondary assembly labor.
10-Year Factory Warranty
Directly aligns with standard commercial luminaire design life expectations.
Plug-and-Play Zero-Touch Provisioning
The onboard GPS automatically maps location coordinates to the Central Management Platform straight out of the box, eliminating expensive field commissioning errors and manual contractor logging.
Advanced Asset Management
Full multi-driver D4i master management pulls real-time diagnostics, automatically identifying failure points to minimize truck rolls.
Dual-Mode Connectivity
Carrier-agnostic NB-IoT and LTE-M across major cellular networks. PTCRB and GCF ready; CE, UKCA and FCC certified.
Open Standard Protocols
LwM2M and TALQ compliance prevents vendor lock-in and bridges smoothly into modern smart city CMS software.
Answers to the questions
we’re asked most.
Find quick answers to the most common questions about the LAMPYRiS SiP embedded cellular outdoor lighting controller.
What is LAMPYRiS and how is it installed?
LAMPYRiS is a System in Package (SiP) embedded cellular outdoor lighting controller, designed to be soldered directly into the PCB of a smart LED driver, a LED light engine or a solar MPPT charge controller — like a regular electronic component. It can also be clipped into a card edge connector.
Does it require an external gateway?
No. LAMPYRiS connects directly over the existing LTE 3GPP cellular network (NB-IoT/LTE-M), so there is no need for an external gateway or concentrator — each controller communicates independently with the management platform.
What is the power supply requirement?
LAMPYRiS is powered with 24VDC (operational range 4VDC to 33VDC) and has an extremely low average power consumption of less than 0.3W.
Does it have onboard GPS?
Yes. It includes an onboard GNSS receiver for automatic and precise self-location and commissioning, with accuracy better than 5m.
What luminaire interface does LAMPYRiS support?
It provides a DALI-2 interface according to the IEC 62386 standard, compliant with D4i, controlling up to 4 individually addressed drivers.
What are the dimensions and weight?
LAMPYRiS measures L43.38mm (1.71") x W23mm (0.91") x H5mm (0.20") and weighs just 10g.
What is the warranty period?
LAMPYRiS comes with a 10-year warranty, subject to obiWAN Terms & Conditions.
