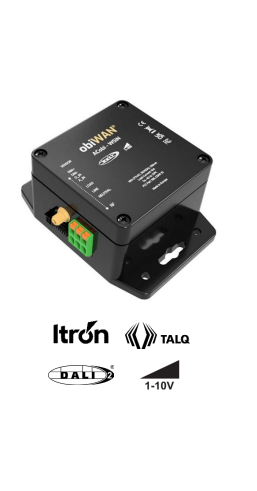

obiWAN® ACobi-WSIN
AC Internal Itron CityEdge Mesh outdoor lighting controller
The obiWAN® ACobi-WSIN Internal Itron Mesh outdoor lighting controller works with the Itron CityEdge platform, managing over 90 million connected devices in more than 500 cities worldwide, and its provisioning tool, enabling an easy and fast deployment of individually managed light points on street lighting networks.
AC Internal Itron CityEdge Mesh outdoor lighting controller
Product Overview
Main Features
External Light Sensor
Typical Applications
Technical Data
| Input | |
| Supply voltage range: | 100-277VAC, 50/60Hz (85-305VAC operational range) |
| Power consumption: | Average <1.5W |
| Surge protection: | ANSI C136.10 high peak surge current rating and high-energy absorption MOV |
| Output Control | Switched internal power relay with rated load current 10A @ 277VAC |
| Interfaces | |
| Luminaire: | Dimming auto-detect 0-10VDC and DALI-2 according to IEC 62386 standard, up to 4 drivers |
| (Optional) Digital/Analog inputs: | Max. 24VDC, 20mA / 0-10VDC |
| (Optional) Light sensor: | 0-64k Lux |
| Metering | 0.5% accuracy as per ANSI C12.20 |
| Metered parameters: | Voltage, Current, Power, Frequency, Energy, Power Factor, Lamp Burning Hours, Device Up Time, Enclosure Temperature, Lamp Brightness Level, Device Boot Counter, Lamp On Cycles |
| Failures identification | Open Circuit, Relay Failure, Lamp Failure, Communication Failure, Cycling Lamp, High/Low Current, High/Low Voltage, High/Low Power, Low Power Factor, High Temperature, Mains Power Failure |
| Environmental | |
| Operating temperature range: | -40 °C to +70 °C |
| Humidity: | 95% RH, non-condensing |
| Storage temperature: | -40 °C to +85 °C |
| Salt mist test: | IEC 60068-2-11 (96 hours) |
| Mechanical | |

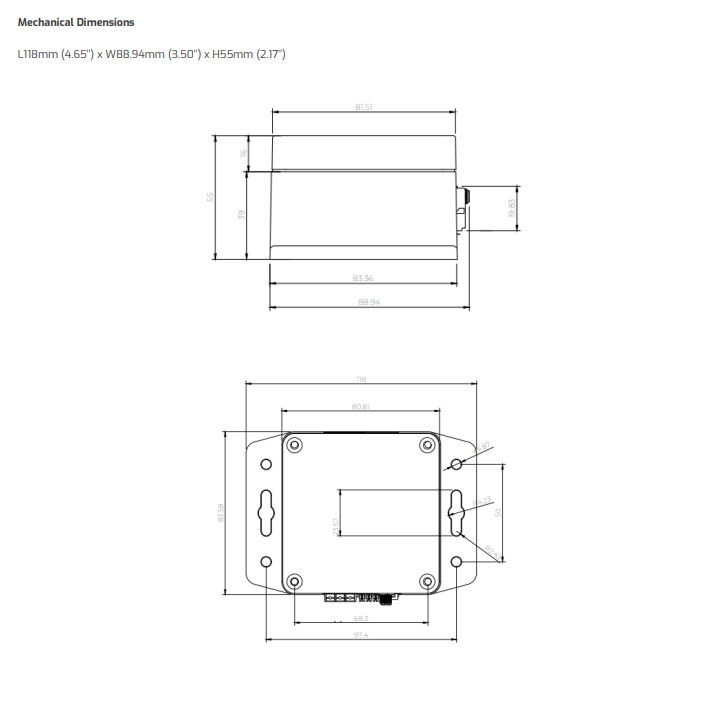

| Dimensions: | L118mm (4.65'') x W88.94mm (3.50'') x H55mm (2.17''), including flanges and connectors |
| Weight: | 230g |
| Degree of protection: | IP20 |
| Housing | ABS, black UL94 HB |
| Warranty(1) | 10 years |
| Reliability data | >1900 FIT (@25°C, FIDES 2009) |
| Itron CityEdge Network | |
| Radio Frequency: | 865-880 MHz – Europe, 902-928 MHz - North America, 902-907 MHz / 915-928 MHz – Brazil, 915-928 MHz – Australia, 921.5-928 MHz - New Zealand. Approvals: ETSI EN 300 220-1, FCC 15.247, Industry Canada RSS-210, ANATEL, AS 4268/ ACMA, NZS 4268/GURL |
| RF Communications: | Data Rate: up to 300kbps mesh networking, Automatic data routing with self-configuration, auto-healing & redundant uplinks, Spreading Technique: FHSS (Frequency Hopping), GFSK, Transmit Power: up to 1 W, Emission Designator: 250KF1D, Receiver Sensitivity: -98 dBm for 10% PER |
| Protocols/Security: | Addressing: IPv6, Protocol: IEEE 802.15.4g (WI-SUN Certified), Security: Secure Hash Algorithm 256-bit (SHA-256) and RAS-1024 or ECC-256, Encryption: Advanced Encryption Standard (AES-128 or AES-256), Authentication: ECDSA & RSA Signatures, Key Storage: Secure NVRAM with tamper detection and key erasure |
| Certifications(2) | DALI-2, TALQ |
| Approval marks(2) |  |
| Installation | Can be installed inside a lighting fixture or column. It possesses an external antenna that has to be routed to the outside of the fixture or column |
(1) Warranty subject to obiWAN Terms & Conditions · (2) Approval pending
Answers to the questions
we’re asked most.
We’re here to help! Our FAQ section provides quick answers to some of the most common inquiries we get on our IT services.
What wireless network does this controller use?
It operates on the open IPv6 Itron RF mesh network (WI-SUN certified), providing robust two-way communication with the Itron CityEdge / Streetlight Vision management platform — no external gateway required.
How is it installed?
It is an internal controller fitted inside the luminaire, fixed to the gear tray plate.
What is the power supply requirement?
100-277VAC, 50/60Hz (85-305VAC operational range), with an average power consumption of <1.5W.
What luminaire interface does it support?
Dimming auto-detect 0-10VDC and DALI-2 according to IEC 62386 standard, up to 4 drivers.
Does it have onboard GPS?
This model does not include onboard GPS; commissioning is handled through the network management platform.
What are the dimensions and weight?
L118mm (4.65'') x W88.94mm (3.50'') x H55mm (2.17''), including flanges and connectors, weighing 230g.
What is the warranty period?
10 years, subject to obiWAN Terms & Conditions.
