obiWAN® DC Zhaga – UN320

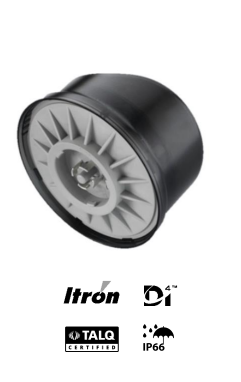

DC Zhaga Itron Mesh outdoor lighting controller
The urbannode ® DC Zhaga UN320 works with the Itron Network platform (with over 90 million connected devices)
DC Zhaga Itron Mesh outdoor lighting controller
Product Overview
The urbannode ® DC Zhaga UN320 works with the Itron Network platform (with over 90 million connected devices), Streetlight Vision CMS (managing devices in more than 500 cities worldwide) and SLV:Go Provisioning tool, enabling an easy and fast deployment of individually managed light points on street lighting networks.
Main Features
▪ D4i certified
▪ High Reliability
▪ Improved safety from the usage of an extra-low voltage power supply (24VDC)
▪ Extremely Low Power consumption
▪ Accurate energy and electrical parameters metering suitable for supporting utility billing
▪ Asset Management oriented, extended control and data exchange with the new D4i drivers
▪ Automatic identification of all lamp failures reducing on-site activities
▪ Default Auto-photocell mode prevents day burning
▪ Motion Detection Input Ready for Dynamic Lighting Scenario
▪ Over-the-air firmware upgrades
▪ The mechanical configuration for installation mounting is external Zhaga Book 18 standard push-and-twist lock Socket
Options
▪ On-board GPS Option for self-location and commissioning
▪ Optional Impact and Vibration Detection (Accelerometer) and / or Luminaire and Pole Tilting Detection (Gyroscope)
▪ Digital Signal Input allows connection of motion sensor
Typical Applications
Outdoor installations: streets, roads and highways, residential areas, road intersections, plazas, parks, outdoor industrial and logistics areas, parking lots, bridges, etc.
Technical Data
| Input | |
| Supply voltage: | 24VDC |
| Power consumption: | Average <0.7W |
| Interfaces | |
| Luminaire: | DALI-2 according to IEC 62386 standard, compliant with D4i, up to 4 Drivers, individually addressed |
| Digital input: | Max. 24VDC, 20mA |
| (Option) Onboard GPS | Automatic and precise self-location and commissioning of the smart device. Standalone GPS, acquisition Sensitivity -130dBm |
| Motion Detection | Input Ready for Dynamic Lighting Scenario |
| Metering | Accuracy as per EN50470 or ANSI C136.52 Metered parameters: Voltage, Current, Active and Apparent Power, Frequency, Active and Apparent, Energy, Power Factor, Lamp Burning Hours, Device Up Time, Enclosure Temperature, Ambient Light Level, Lamp Brightness Level, Driver Temperature, LED Module Temperature, Device Boot Counter, Driver Boot Counter, Lamp On Cycles, LED Voltage, LED Current |
| Alarming | High/Low Voltage, Current and Power, Low Power Factor, Day Burner, Lamp Failure, Driver Communication Failure, Loss of Mains Power |
| Environmental | |
| Operating temperature range: | -40 °C to +70 °C |
| Humidity: | 95% RH, non-condensing |
| Storage temperature: | -40 °C to +85 °C |
| Mechanical | |
| Dimensions: | H43mm (1.69") x D80mm (3.15") |
| Weight: | 125g |
| Degree of protection: | IP66, when fitted |
| Housing | |
| Base: | PBT, light grey |
| Cap: | PC, transparent smoke grey |
| Thermoplastic rating: | UL 94V-0 and UL UV-f1 |
| Mounting type | Zhaga Book 18 receptacle |
| Warranty(1) | 10 years |
| Reliability data | >646 FIT (@25°C, FIDES 2009) |
| Itron Network | |
| Radio Frequency: | 865-880 MHz – Europe, 902-928 MHz - North America, 902-907 MHz / 915-928 MHz – Brazil, 915-928 MHz – Australia, 921.5-928 MHz - New Zealand. Approvals: ETSI EN 300 220-1, FCC 15.247, Industry Canada RSS-210, ANATEL, AS 4268/ ACMA, NZS 4268/GURL |
| RF Communications: | Data Rate: up to 300kbps mesh networking, Automatic data routing with self-configuration, auto-healing & redundant uplinks, Spreading Technique: FHSS (Frequency Hopping), GFSK, Transmit Power: up to 1 W, Emission Designator: 250KF1D, Receiver Sensitivity: -98 dBm for 10% PER |
| Protocols/Security: | Addressing: IPv6, Protocol: IEEE 802.15.4g (WI-SUN Certified), Security: Secure Hash Algorithm 256-bit (SHA-256) and RAS-1024 or ECC-256, Encryption: Advanced Encryption Standard (AES-128 or AES-256), Authentication: ECDSA & RSA Signatures, Key Storage: Secure NVRAM with tamper detection and key erasure |
| Certifications | Itron Network Certified, D4i Certified, TALQ Certified |
| Approval marks |  |
| Standards | |
| Safety: | IEC 60950-1 / IEC 60950-22 |
| Electromagnetic compatibility: | FCC Part 15, Subpart B CFR 47 / CISPR 11 |
| Installation | Can be installed on the top or bottom of a luminaire connected to a Zhaga B18 twist-lock socket |
(1) Warranty subject to obiWAN Terms & Conditions
faq's
Answers to the questions
we’re asked most.
We’re here to help! Our FAQ section provides quick answers to some of the most common inquiries we get on our IT services.
What wireless network does this controller use?
It operates on the open IPv6 Itron RF mesh network (WI-SUN certified), providing robust two-way communication with the Itron / Streetlight Vision management platform — no external gateway required.
How is it installed?
It mounts externally on a standard Zhaga Book 18 receptacle (twist-lock socket) on the luminaire.
What is the power supply requirement?
24VDC, with an average power consumption of <0.7W.
What luminaire interface does it support?
DALI-2 according to IEC 62386 standard, compliant with D4i, up to 4 Drivers, individually addressed.
Does it have onboard GPS?
On-board GPS is available as an option, providing automatic and precise self-location and commissioning of the device.
What are the dimensions and weight?
H43mm (1.69") x D80mm (3.15"), weighing 125g.
What is the warranty period?
10 years, subject to obiWAN Terms & Conditions.
