DC Zhaga Itron Mesh outdoor lighting controller

home
Typical applications Outdoor installations: streets, roads and highways, residential areas, road intersections, plazas, parks, outdoor industrial and logistics areas, parking lots, bridges, etc. Ordering data Donwload
Model no.
Description
Installation
Wireless network
Power supply
Luminaire interface
UN320

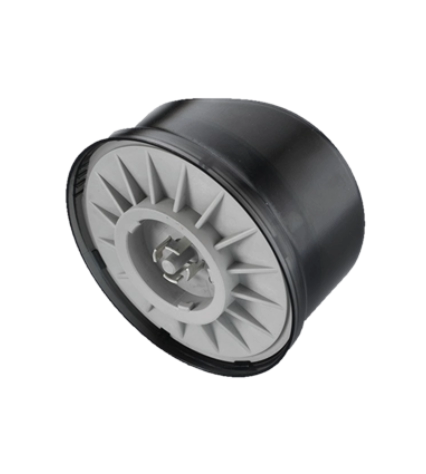

DC Zhaga Itron Mesh outdoor lighting controller
Zhaga, external
Works with the Itron Wi-SUN mesh network
24VDC
DALI-2
Product overview The urbannode ® DC Zhaga UN320 works with the Itron Network platform (with over 90 million connected devices), Streetlight Vision CMS (managing devices in more than 500 cities worldwide) and SLV:Go Provisioning tool, enabling an easy and fast deployment of individually managed light points on street lighting networks. Main features D4i certified High Reliability Improved safety from the usage of an extra-low voltage power supply (24VDC) Extremely Low Power consumption Accurate energy and electrical parameters metering suitable for supporting utility billing Asset Management oriented, extended control and data exchange with the new D4i drivers Automatic identification of all lamp failures reducing on-site activities Default Auto-photocell mode prevents day burning Motion Detection Input Ready for Dynamic Lighting Scenario Over-the-air firmware upgrades The mechanical configuration for installation mounting is external Zhaga Book 18 standard push- and- twist lock Socket Digital Signal Input for connection of a motion sensor Options On-board GPS Option for self-location and commissioning Pole Tilting Detection
Technical data
Input Supply voltage: Power consumption:
24VDC Average <0.7W
Interfaces Luminaire: Digital Input:
DALI-2 according to IEC 62386 standard, compliant with D4i, up to 4 Drivers, individually addressed Max. 24VDC, 20mA
(Option) Onboard GPS
Automatic and precise self-location and commissioning of the smart device. Standalone GPS, acquistion Sensitivity -130dBm
(Option) Pole Tilt Detection
Luminaire tilting detection over the 3 dimensional axis
Motion Detection
Input Ready for Dynamic Lighting Scenario
Metering Alarming
Accuracy as per EN50470 or ANSI C136.52 Metered parameters: Voltage, Current, Active and Apparent Power, Frequency, Active and Apparent, Energy, Power Factor, Lamp Burning Hours, Device Up Time, Enclosure Temperature, Ambient Light Level, Lamp Brightness Level, Driver Temperature, LED Module Temperature, Device Boot Counter, Driver Boot Counter, Lamp On Cycles, LED Voltage, LED Current High/Low Voltage, Current and Power, Low Power Factor, Day Burner, Lamp Failure, Driver Communication Failure, Loss of Mains Power
Environmental Operating temperature range: Humidity: Storage temperature:
-40 °C to +70 °C 95% RH, non-condensing -40 °C to +85 °C
Mechanical Dimensions: Weight: Degree of protection:
H43mm (1.69’’) x D80mm (3.15’’) 125g IIP66, when fitted
Housing Base: Cap: Thermoplastic rating:
Mounting type
Zhaga Book 18 receptacle
Warranty (1)
5 years
Reliability data
646 FIT (@25°C, FIDES 2009)
Itron Network Radio-Frequency: RF Communications: Protocols/Security:
865-880 MHz – Europe, 902-928 MHz - North America, 902-907 MHz / 915-928 MHz – Brazil, 915-928 MHz – Australia, 921.5-928 MHz - New Zealand. Approvals: ETSI EN 300 220-1, FCC 15.247, Industry Canada RSS-210, ANATEL, AS 4268/ ACMA, NZS 4268/GURL Data Rate: up to 300kbps mesh networking, Automatic data routing with self-configuration, auto- healing & redundant uplinks, Spreading Technique: FHSS (Frequency Hopping), GFSK, Transmit Power: up to 1 W, Emission Designator: 250KF1D, Receiver Sensitivity: -98 dBm for 10% PER Addressing: IPv6, Protocol: IEEE 802.15.4g (WI-SUN Certified), Security: Secure Hash Algorithm 256-bit (SHA- 256) and RAS-1024 or ECC-256, Encryption: Advanced, Encryption Standard (AES-128 or AES-256), Authentication: ECDSA & RSA Signatures, Key Storage: Secure NVRAM with tamper detection and key erasure
Certifications
Itron Network Certified, D4i Certified, TALQ Certified
Approval marks
Standards Safety: Electromagnetic compatibility:
IEC 60950-1 / IEC 60950-22 FCC Part 15, Subpart B CFR 47 / CISPR 11
Installation
Can be installed on the top or the bottom of a luminaire connected to a Zhaga B18 twist-lock socket
1) Warranty subject to obiWAN Terms & Conditions
PBT, light grey PC, transparent smoke grey UL 94V-0 and UL UV-f1
